One tide remains to expose the bottom, but water at the pump well is still rising
Mast
Masts and rigging transfer sail loads into the hull.
Deck
Deck beams help the hull resist transverse deformation.
Keel
The main longitudinal member forms the structural baseline of many wooden sailing ships.

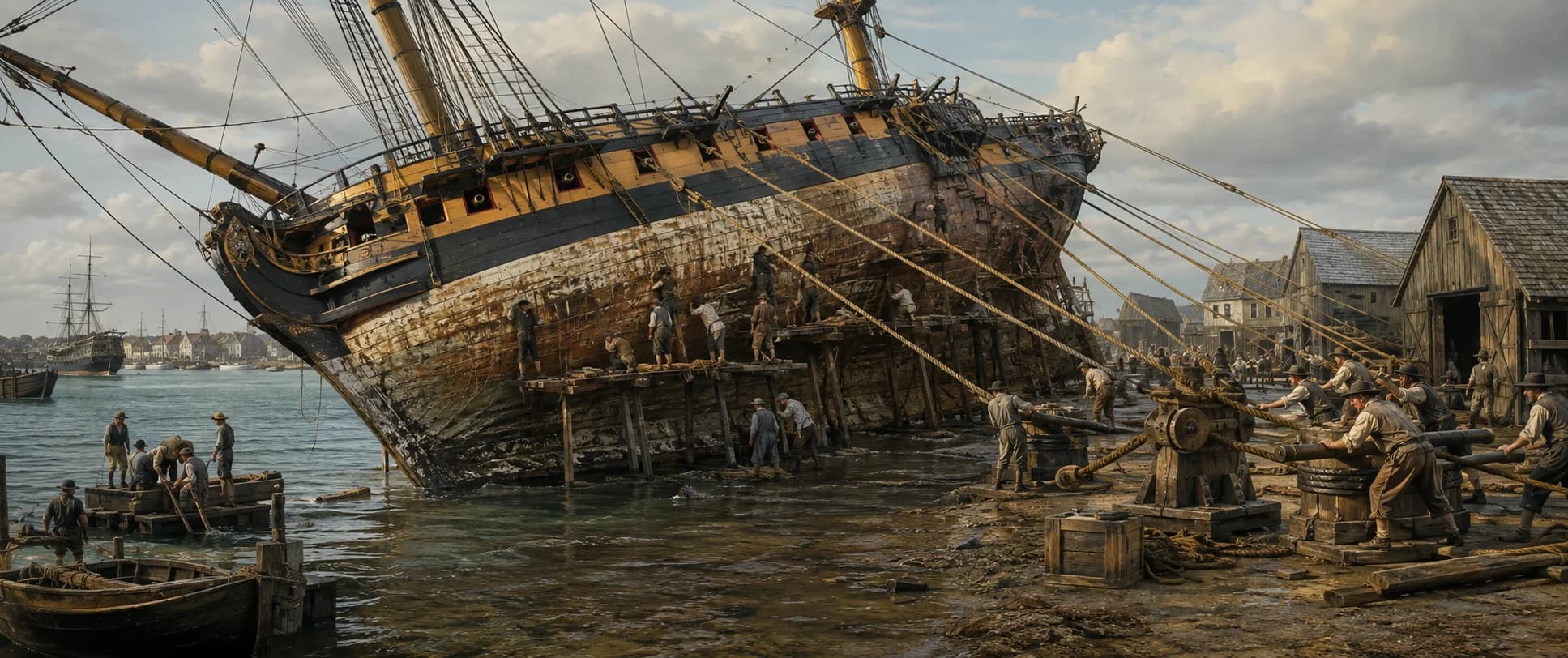

Careening was controlled heeling, not merely dropping a ship onto any beach
William Falconer’s eighteenth-century marine dictionary defined careening as hauling a ship down on one side by a powerful purchase applied to masts that had been supported against the strain. A shore facility could provide moorings, capstans and fixed points for heaving down. Elsewhere, a vessel might use high tide to reach suitable ground and settle on one side as the water fell. Both exposed the underwater body, but their support and sequence differed.
A dry dock admitted the ship, supported it and removed the surrounding water, keeping the entire underwater hull accessible. Careening demanded less permanent infrastructure but exposed one side at a time under less controllable loads. Small craft could be hauled bodily ashore; a large warship required extensive preparation. Size, site and method must be identified before different kinds of ‘beaching for repair’ are treated as the same operation.
The job began by reducing weight and building a load path through the masts
Yard crews removed or redistributed guns, cargo, ballast, boats and stores to lessen draft and control the direction of heel. Yards, topmasts or rigging might also be reduced. Gunports, hatchways and vents had to be considered against the future waterline, with pumping or bailing ready below. Because shore tackles turned a mast into a huge lever, mast steps, shrouds and temporary supports had to withstand abnormal lateral loads.
Too little pull left the work under water; too much, too rapidly, brought openings down, shifted loose weight or damaged mast and hull. Tide, wind and ground narrowed the safe working window. Skill lay not in achieving the most dramatic angle but in holding a useful angle at which trades could work, the structure remained sound and the ship could later be righted.
The exposed side passed from cleaning to diagnosis, caulking and local replacement
Weed, shell and other fouling increased drag, while wooden bottoms faced shipworm, decay, impact and loosened fastenings. Workers cleaned the surface, then inspected sheathing, planking, seams, keel and stern structure. The findings determined whether the next task was renewed caulking, a patch, a short length of replacement plank or a much larger yard repair. Cleaning and structural work shared access but were not the same diagnosis.
Protective systems varied by fleet and date: coatings, sacrificial wooden sheathing and, increasingly in the later eighteenth century, copper sheathing. Copper reduced fouling and worm attack but introduced material, electrochemical and fastening concerns, and never abolished inspection. A sound account identifies the treatment of a particular ship at a particular date instead of assigning one coating to the entire Age of Sail.
Cook’s inspection at Onrust turned routine access into a damage investigation
On 9 November 1770, Endeavour was heaved down at Onrust in Batavia Bay. Cook recorded that exposing the larboard bottom revealed much of the false keel gone, the main keel badly wounded, missing sheathing and planks almost eaten through, with worms reaching the timbers. He expressed astonishment that the ship had survived hundreds of leagues of dangerous navigation in that state.
Only the worst areas could be patched before the ship was righted that evening. She was heaved down again the next morning, when yard carpenters and caulkers worked the bottom while enslaved people bailed the hold. The entry preserves the side-by-side and tide-by-tide rhythm of the operation. It also names the coerced labour on which this colonial yard depended; reducing those people to anonymous ‘local workers’ would discard evidence present in the source.
Righting was an acceptance test, and uncontrolled flooding or strain remained the chief danger
Once upright, water at the pump well and in the bilge tested whether seams were secure. Carpenters also had to recheck rigging, masts, ballast and equipment that had been moved. If the second side required attention, the unloading, hauling and repair cycle began again. A weather change, tackle failure, slipping shore anchor or mistaken waterline could escalate quickly.
The U.S. National Park Service’s history of Charlestown Navy Yard notes that heaving down required major dismantling, imposed great stress on a wooden hull and sometimes ended with a ship sinking. That risk helps explain the strategic value of dry docks. They did not make repair harmless, but offered more controlled support and drainage, access to both sides and less dependence on a brief tidal opportunity.
Questions
Continue exploring this subject
Were careening and heaving down the same thing?
Period sources often used them closely, especially for hauling from the masts. Careening could also be used more broadly for settling on tidal ground, so the specific site and method still matter.
Why were cargo, guns and ballast removed?
Lightening reduced draft, while deliberate redistribution controlled the heel. Loose heavy items could shift dangerously, and topweight increased loads on rig, mast and hull.
Was careening only for scraping barnacles?
No. Cleaning was common, but access also allowed inspection for worm, damaged sheathing, open seams, planking and keel defects, followed by caulking or replacement.
Could a large warship be careened on an ordinary beach?
It required suitable depth, tide, ground, anchors, tackles and a large workforce. An unsuitable beach could damage or capsize the vessel, so navies used prepared careening wharves or dry docks where possible.
Did copper sheathing remove the need to inspect the bottom?
No. Copper could be damaged, fastenings and timber still deteriorated, and collision or seam defects remained possible. It reduced important hazards rather than creating a permanent hull.
